S1 Flat - Meshtastic®

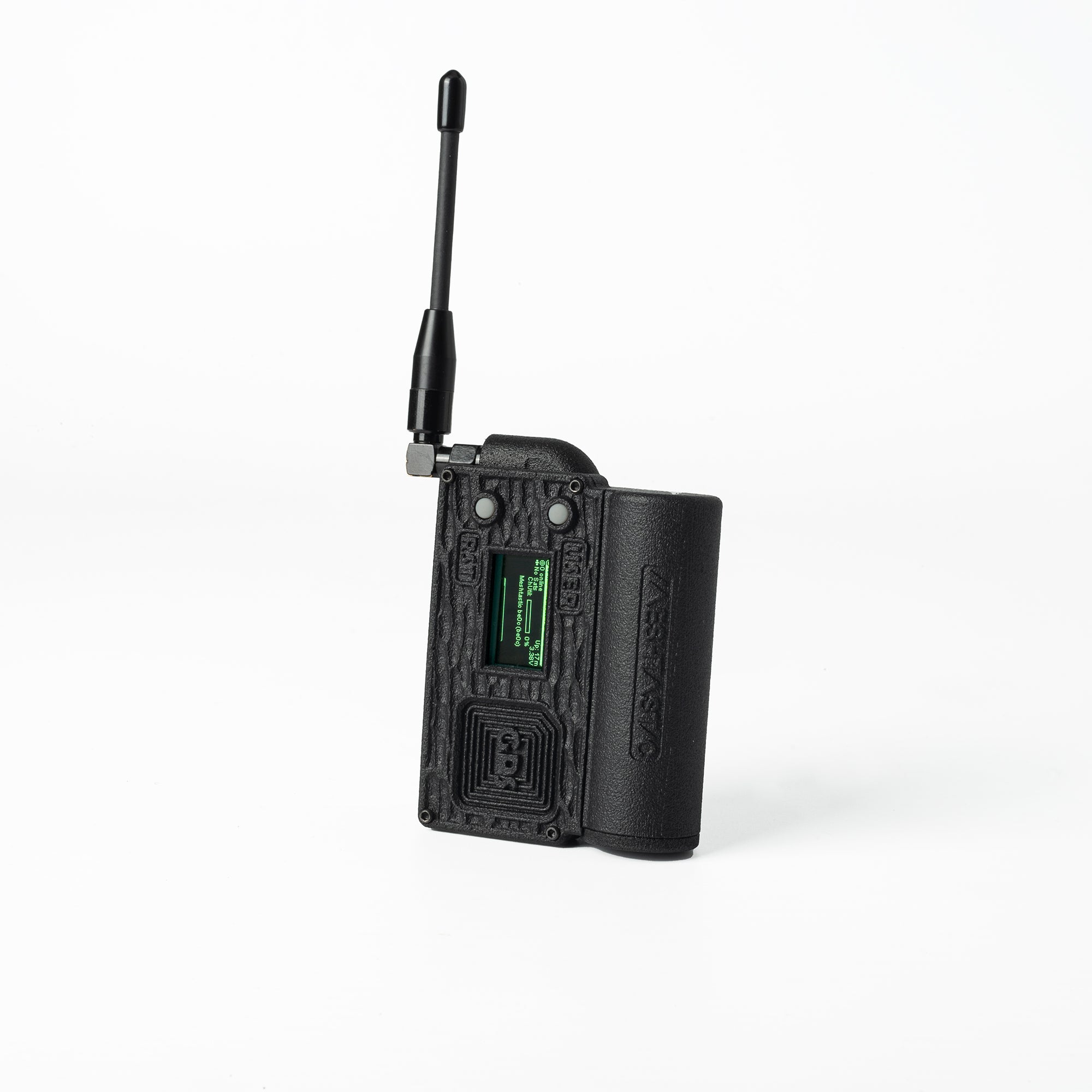

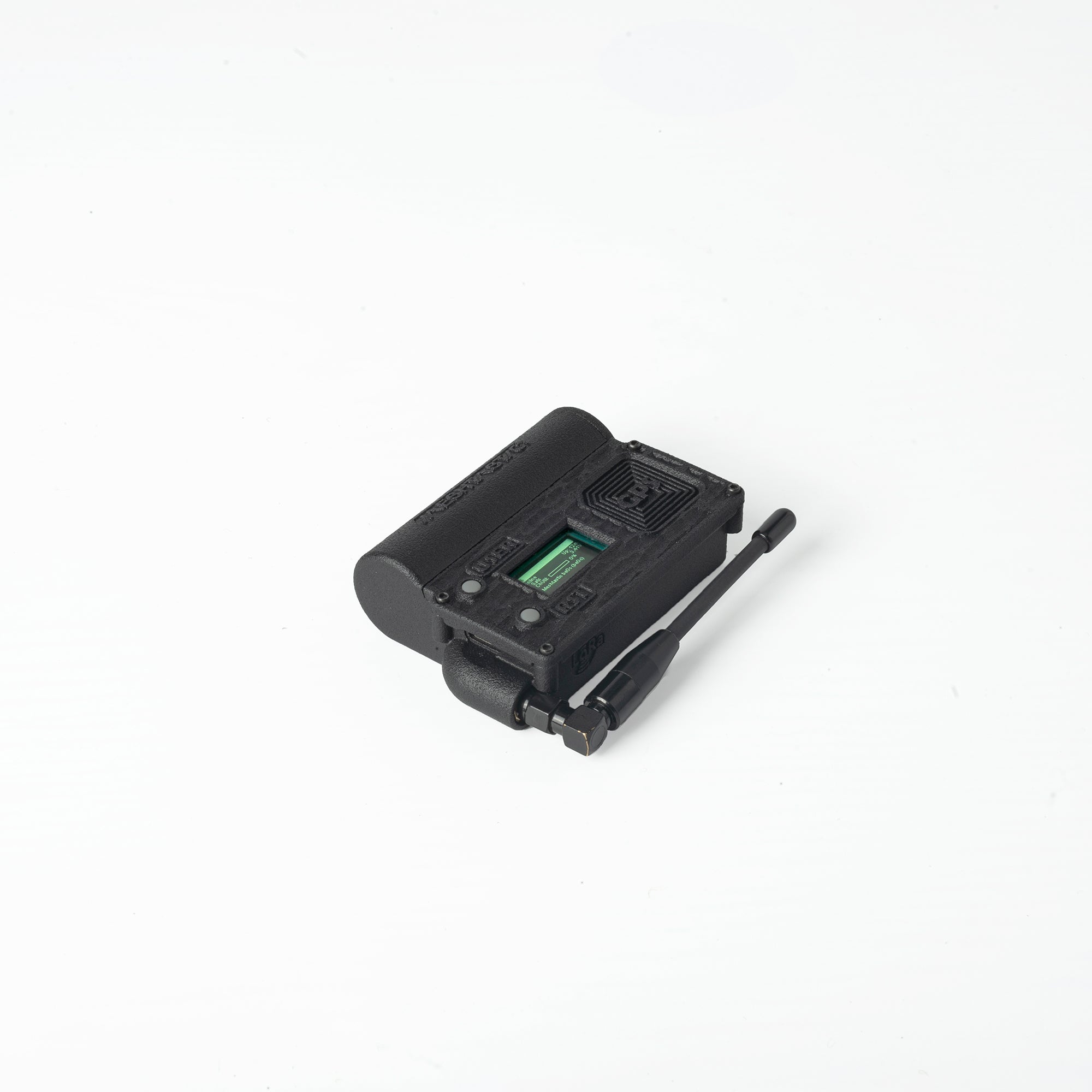

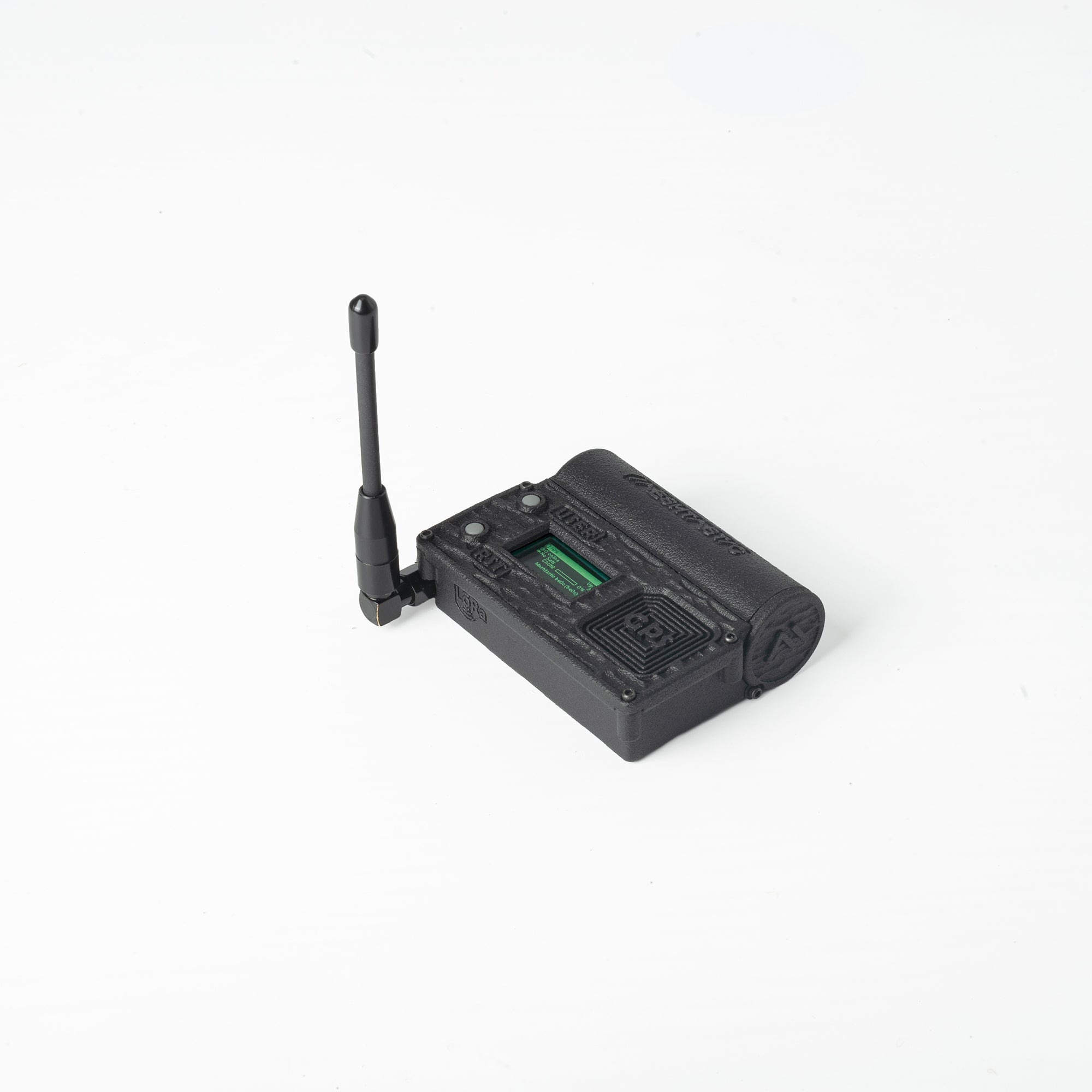

GPS-enabled Meshtastic® device, powered by the Heltec Wireless Tracker V1.2 mainboard. Constructed with HP PA12 nylon-sintered 3D printing for splash resistance, featuring a rugged and durable design.

Based on the ESP32-S3FN8 processor, integrated with SX1262 and UC6580 chips. Capable of object tracking and data sharing via Wi-Fi, Bluetooth, and LoRa. The GNSS module supports L1+L5/L2 bands, enabling multi-constellation positioning (GPS, GLONASS, BDS, Galileo, NAVIC, QZSS). Hand-assembled, ready to use, pre-tested, and flashed with stable firmware.

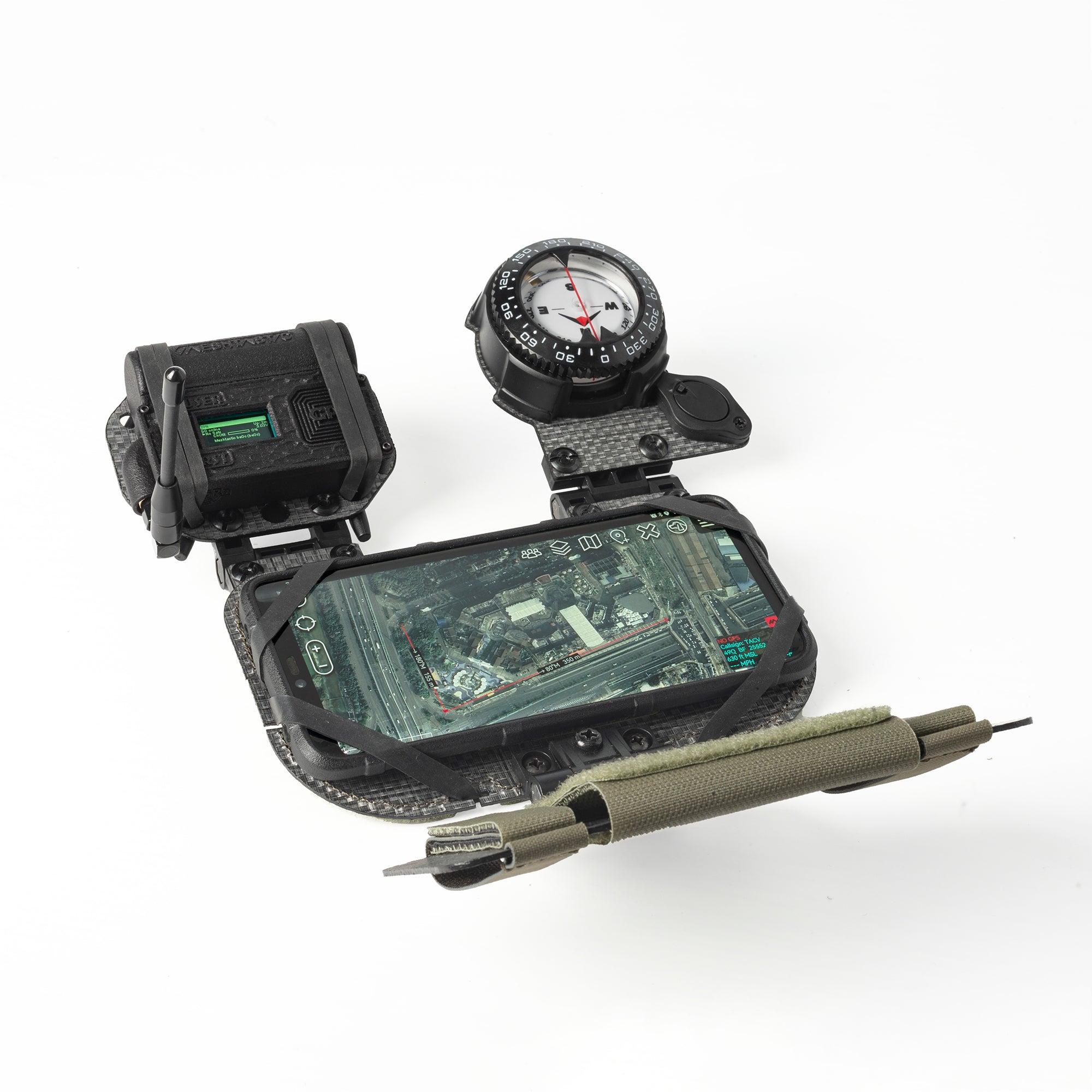

Meshtastic mobile apps are available for both iOS and Android, with plugin support for ATAK on Android.

Usage:

Connect the device to a smartphone via USB or Bluetooth, configure group scanning and sharing, and nodes within the same group will form a decentralized mesh network. Users can send real-time messages and view locations via the Meshtastic app. Android users can integrate with ATAK for extended functionality.

Applications:

• Decentralized wireless communication

• Outdoor hiking and wilderness exploration

• Military simulations

• Tracking objective

Package includes:

• Heltec Wireless Tracker V1.2 mainboard

• HP PA12 nylon-sintered casing

• rubber-duck antenna

• Replaceable 18650 lithium battery

• TYPE-C dust cover

Dimensions:

• Casing: 81.6mm × 57.8mm × 24.2mm

• Antenna length: 60mm

Features:

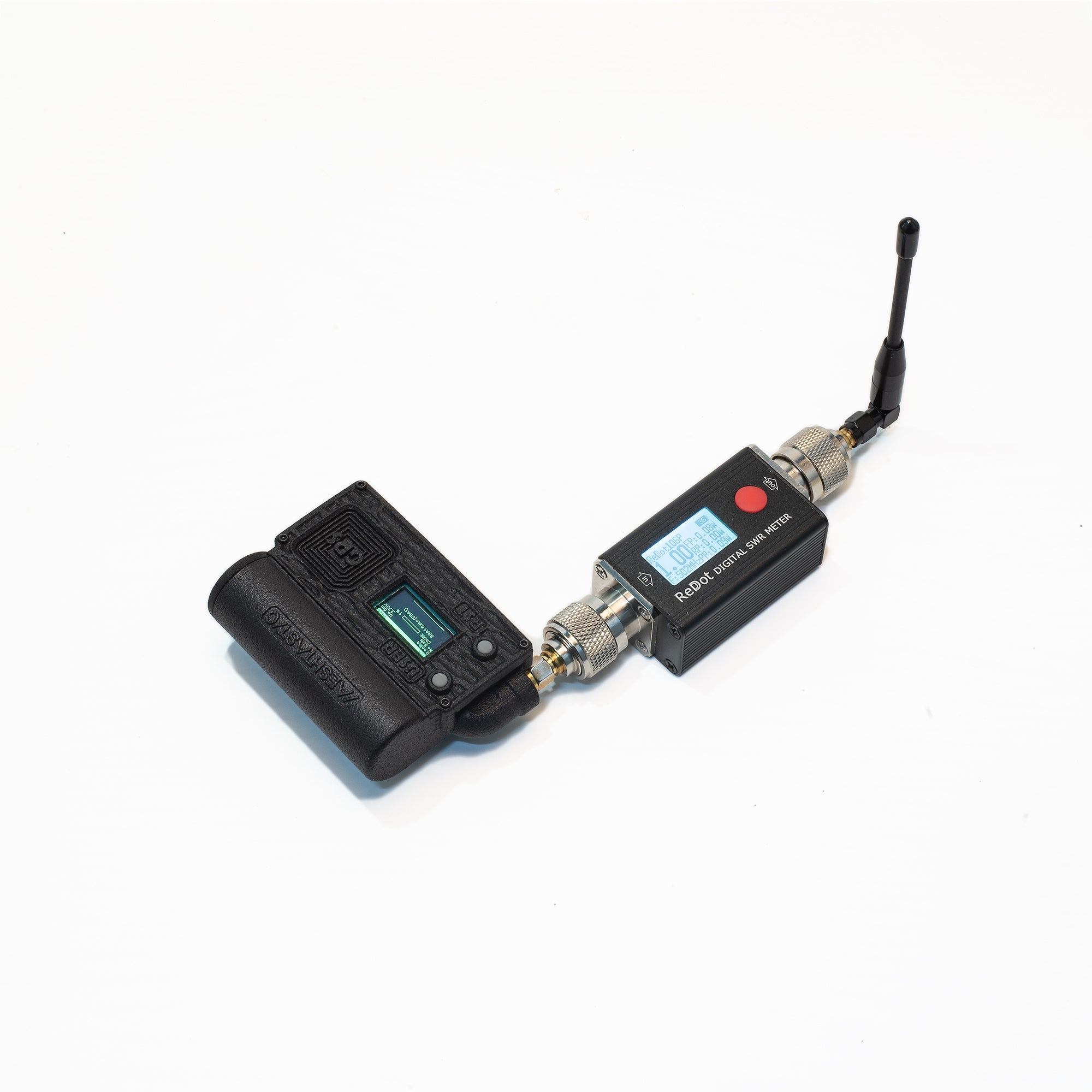

• SMA male connector (internal thread + pin) for the antenna

• Waterproof acrylic screen adhesive

• Silicone buttons

• TYPE-C charging with OTG direct-connect support

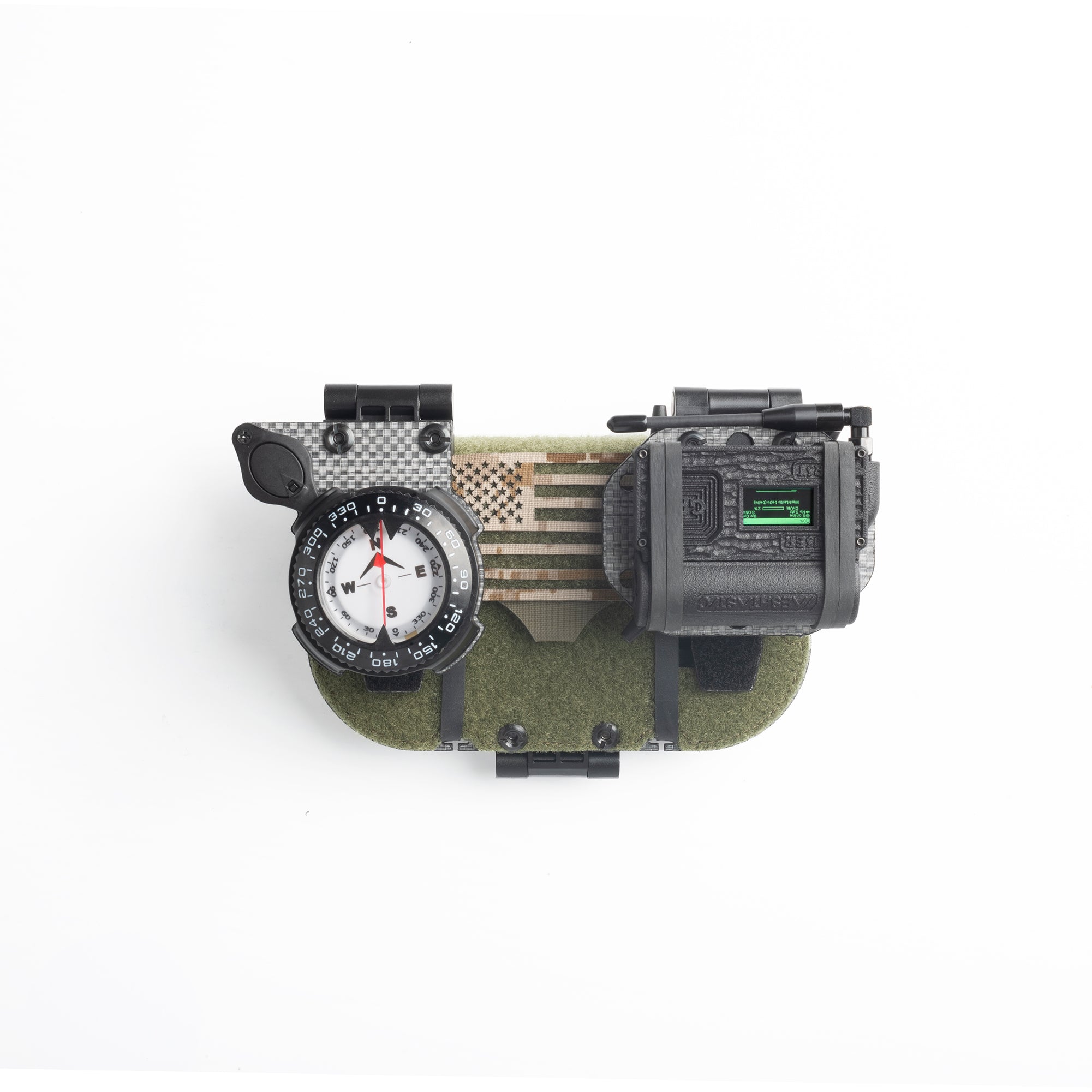

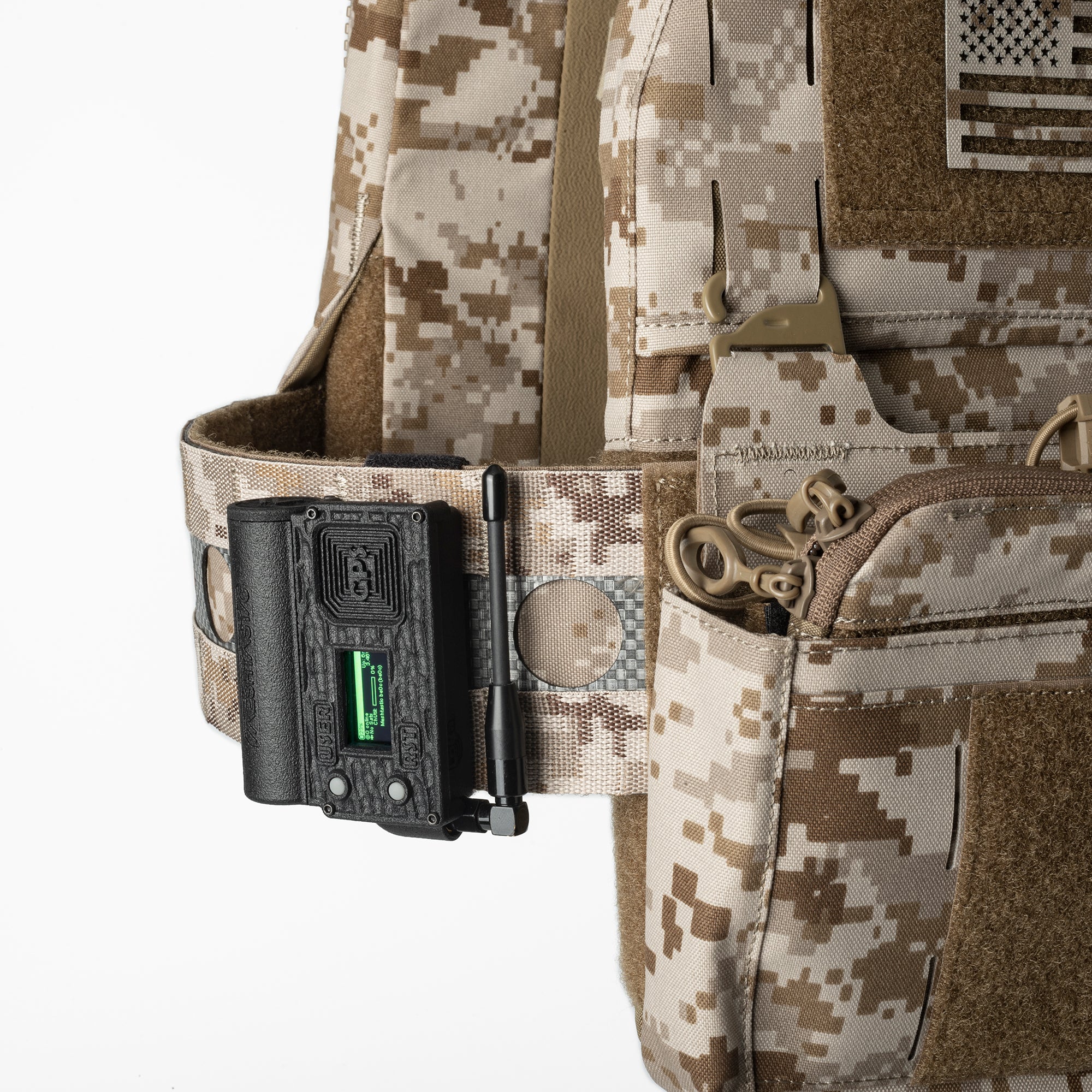

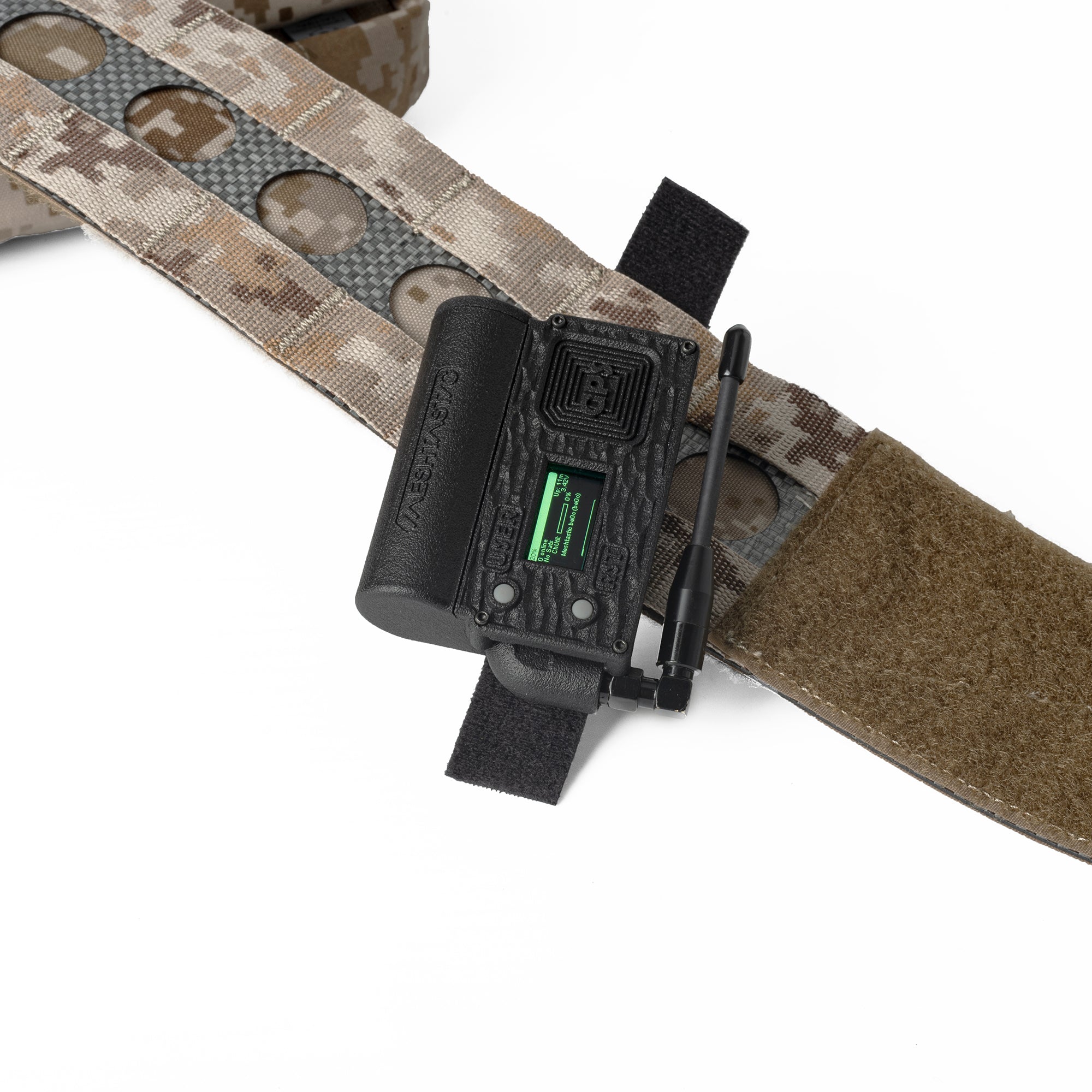

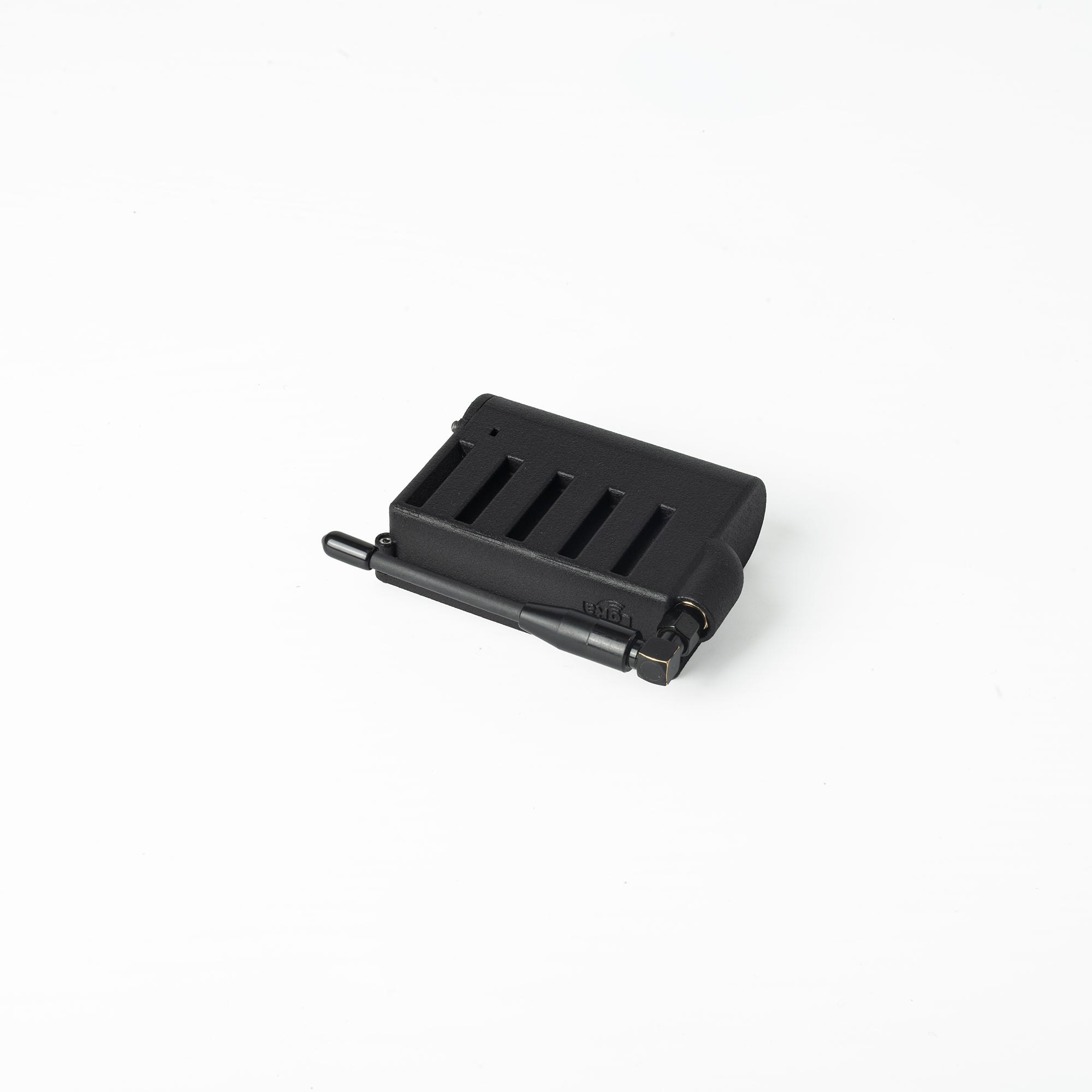

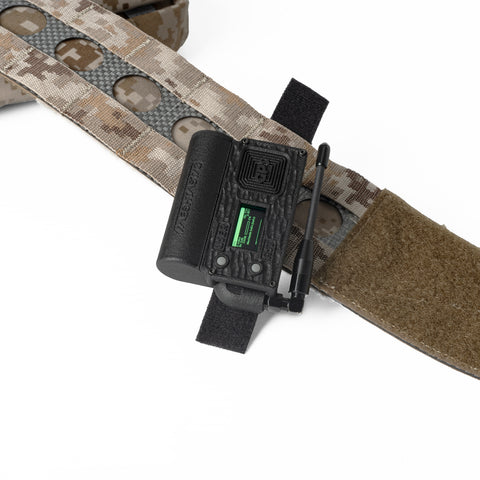

• 1 column of MOLLE mounting point

Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various open-source licenses. For details, visit GitHub.
